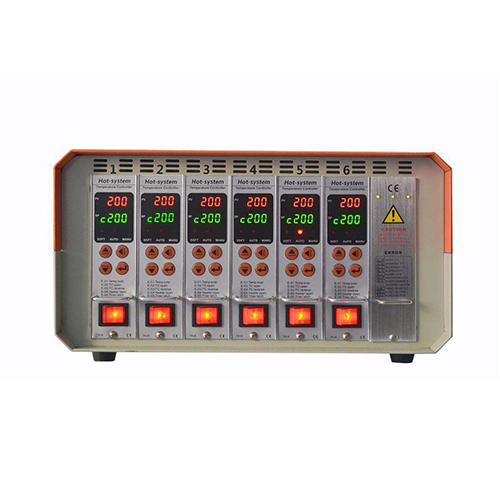

- 產品名稱：6點插卡式溫控箱
- 所屬分類：溫控箱
- 在線預訂
- 詳細介紹
操作面板
簡介:本產品集模具溫度控制、熱膠道針閥控制于一體，溫度控制12-36組和時序控制6-18組可選配，高精度PID調節，確保溫度控制的精確性，控制輸出類型有可硅調壓(PWM方式)和可控硅調功(SSR方式)立體式箱體設計，占用空間小，穩定性好大屏幕TFT-LCD直觀顯示，維修維護成本低。
The productset mold temperature control, hotrunner needle voive conirul i one, temperaure control and timing control group 6-18 12 -36 group optinal, high- precion PID regulatorto ensure the acuraCy of the temperature control to control the cofrllbl output types sion regulator IPWM mode) and SCR Power (SR model three- dimensional box design, smllooprnt, the stability ofo big- sreen TFT-LCD visual display, repair and maintenance costs low.
技術參數
※中文報警信息提示 ※電流和輸出比例顯示
※ 熔絲損壞提示 ※熱電偶開路、反接偵測
※加熱管短路、開路偵測 ※可控硅短路、開路監測
※380V過電壓保護功能 ※零線接錯不燒繼電器
※熱電偶損壞并線功能
※全工業級電子元件，適合任何低溫和高溫工作環境
※Chinese alarm message alert
※current and output proportional display
※fuse damaged Tips
※thermocouple open circuit, reverse polarity detection
※heating tube short, open detection
※thyristor short circuit, open circuit monitoring
※380V overvoltage protection
※zero line fault relay does not burn
※thermocouple wire damage and function
※Allindustrial grade electronic components,Low and high temperature suitable for any work environment
基本參數
線性電壓控制輸出，更好的保護加熱管改良型接口，完全避免燒卡情況的發生個性軟件定制
控制溫差:士1°C
冷端補償誤差: < +1°C溫度系數
溫度控制范圍: K型熱電偶0- 450°C, J型熱電偶0- 450°C
輸出總功率: 3.5KW*回路數
單回路最大輸出電流: 15A
報警范圍: 0-100C自由設定
適用熱電偶型號: K、J型
工作電源盒最大輸出率: AC220V (三相四線)
數字PID調節
I'EHt: -10"C-60"Ct8X
35% - 85%RH, 無腐蝕性
Linear
voltage control output, and better protection of the heating tubes
Improved interface card completely avoid burning happening Personalized
custom software
Control temperature difference: t 1oC
Cold junction compensation error: <+1 oC temperature coefficient
Temperafure control: K-type thermocouple 0-450oC, J-type thermocouple 0 -450oC
Total power output: 3.5KW " number of loops
Single-loop maximum output current: 15A
Alarm range :0-100C set free
Applicable thermocouple type: K, Jtype
Maximum output power box work rate: AC220V (three phase four - wire)
Digital PID regulator
Working environment:-10oC-60oC Relative humidity
35% -85% RH, non-corrosive
